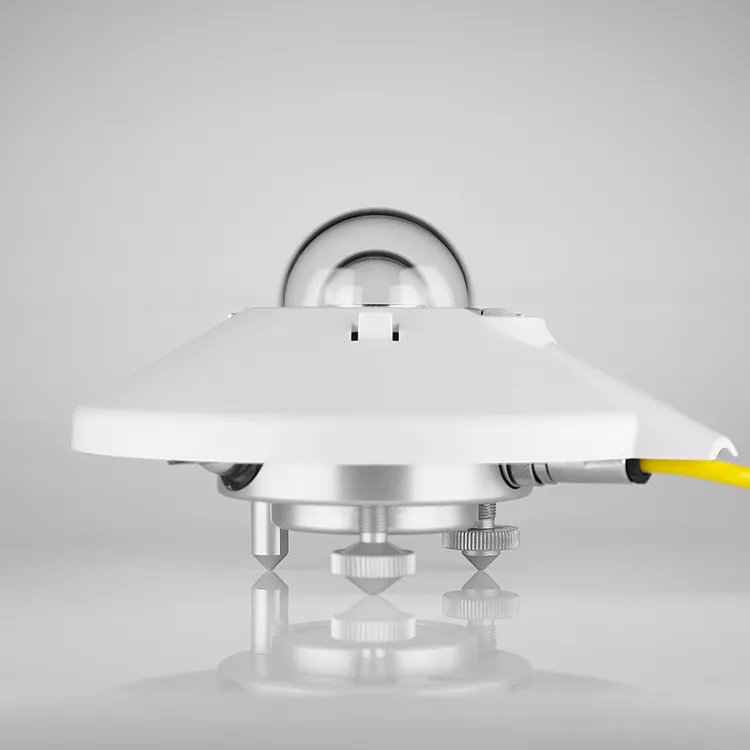

CMP6 Pyranometer
The CMP6 is a Kipp & Zonen pyranometer with improved performance over the CMP3 thanks to greater thermal mass and a double-glass dome, suited to hydrological, agricultural and general solar monitoring.
- Output
- 5 to 20 µV/W/m²
- Spectral range (50% points)
- 285 to 2800 nm
- Response time
- 18 s
Overview
In detail
How it works
The CMP6 shares its sensor with the smaller CMP3 but improves on it with increased thermal mass and a double-glass dome construction. It needs no power, instead producing a low voltage output of 0-20 mV relative to the radiation received; the AMPBOX accessory can boost this to a higher voltage or 4-20 mA signal.
Deployment
An integral bubble level, raised to the top of the housing, can be checked without removing the snap-on sun shield, which also covers the connector. The connector's gold-plated contacts allow easy exchange and re-calibration, and the screw-in drying cartridge is easy to remove, with replacement desiccant supplied in refill packets.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range (50% points)
- 285 to 2800 nm
- Output
- 5 to 20 µV/W/m²
- Response time
- 18 s
- Zero offset A
- < 10 W/m²
- Zero offset B
- < 4 W/m²
- Directional response (up to 80° at 1000 W/m²)
- < 20 W/m²
- Temperature dependence of sensitivity (-10 to +40 °C)
- < 4 %
- Operating temperature
- -40 to +80 °C
- Maximum solar irradiance
- 2000 W/m²
- Field of view
- 180°
