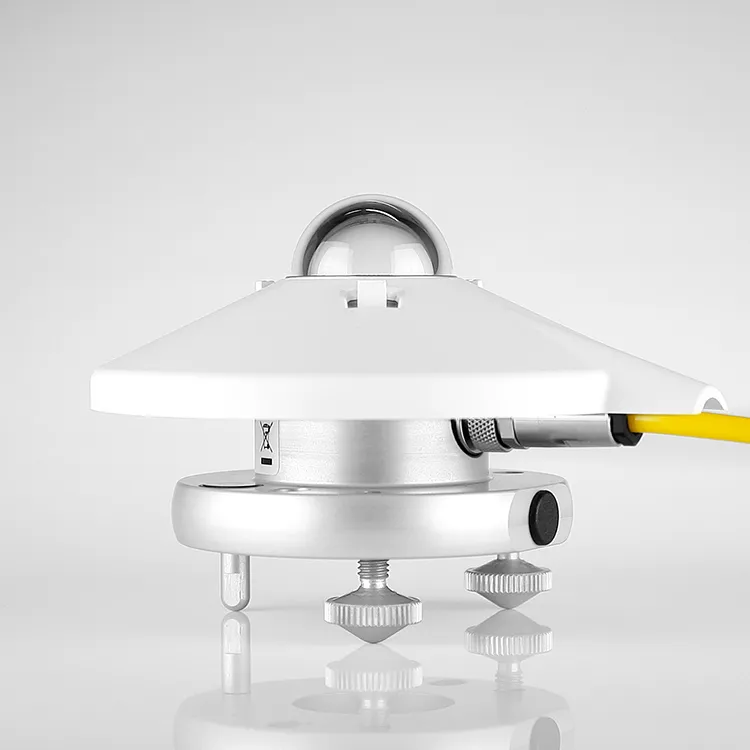

CMP3 Pyranometer
The CMP3 is Kipp & Zonen's entry-level thermopile pyranometer, delivering ISO 9060 Class C accuracy for routine indoor and outdoor solar irradiance measurement.
- Output
- 5 to 20 µV/W/m²
- Spectral range (50% points)
- 300 to 2800 nm
- Response time
- 18 s
Overview
In detail
How it works
Based on the same thermopile design as the commercial-grade CMP10/11 but at a budget price, the CMP3 uses a quartz dome with a 180° field of view for measuring global horizontal irradiance (GHI). No power is required — it produces an output of 0-20 mV proportional to the solar irradiance received.
What's included
Common accessories include the AMPBOX signal amplifier, a ventilation unit, unventilated or ventilated mounting plates (single or albedometer pairs), mounting brackets, a shadow ring for diffuse-radiation measurement, an adjustable tilt kit, and signal cables in 10, 25, 50 and 100 m lengths.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range (50% points)
- 300 to 2800 nm
- Output
- 5 to 20 µV/W/m²
- Response time
- 18 s
- Zero offset A
- < 15 W/m²
- Zero offset B
- < 5 W/m²
- Directional response (up to 80° at 1000 W/m²)
- < 20 W/m²
- Temperature dependence of sensitivity (-10 to +40 °C)
- < 5 %
- Operating temperature
- -40 to +80 °C
- Maximum solar irradiance
- 2000 W/m²
- Field of view
- 180°
