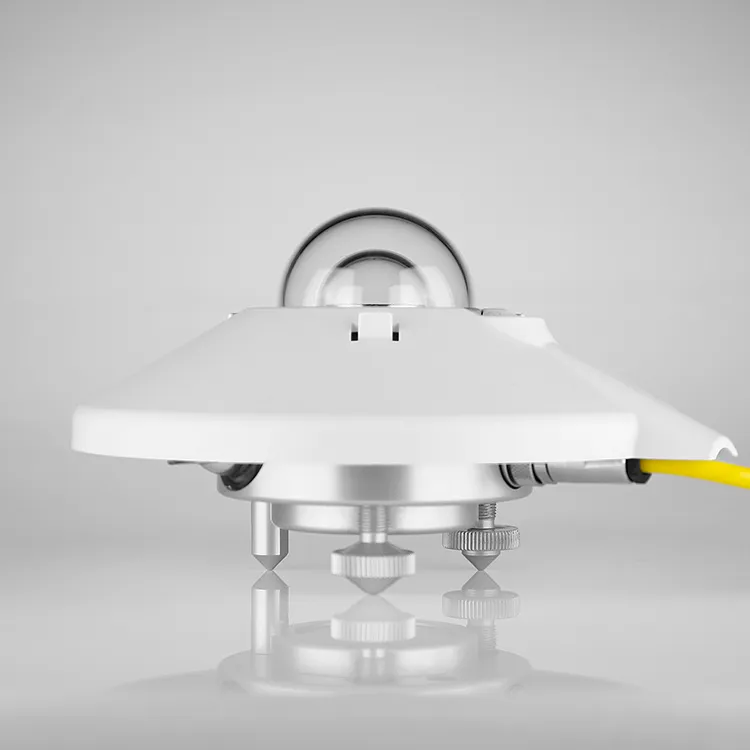

CMP11 Pyranometer for Meteorological Networks
The CMP11 pyranometer from Kipp and Zonen uses the temperature-compensated detector technology originally developed for the CMP22 and is a step up in performance from the CMP6. It is particularly suitable for meteorological networks, and the reduced response time of 1.66 seconds (63%) meets the requirements for solar energy applications.
- Spectral range (50% points)
- 285 to 2800 nm
- Sensitivity
- 7 to 14 µV/W/m²
- Response time
- < 5 s
Overview
In detail
Construction
The integral bubble level is raised to the top of the housing and can be viewed without removing the redesigned snap-on sun shield, which also covers the connector. The connector with gold-plated contacts allows for easy exchange and re-calibration. The screw-in drying cartridge is easy to remove and the replacement desiccant is supplied in convenient refill packets.
Output
The pyranometer does not require any power; it supplies a low voltage of 0 to 20 mV in relation to the amount of incoming radiation. When a higher voltage level or a 4 to 20 mA signal is required, the AMPBOX is the perfect solution.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Spectral range (50% points)
- 285 to 2800 nm
- Sensitivity
- 7 to 14 µV/W/m²
- Response time
- < 5 s
- Zero offset A
- < 7 W/m²
- Zero offset B
- < 2 W/m²
- Directional response (up to 80° with 1000 W/m² beam)
- < 10 W/m²
- Temperature dependence of sensitivity (-10 ºC to +40 ºC)
- < 1 %
- Operating temperature
- -40 °C to +80 °C
- Maximum solar irradiance
- 4000 W/m²
- Field of view
- 180 °
