CMF Mounting Fixtures
CMF mounting fixtures are round mounting plates with an integral rod for fixing a single Kipp & Zonen radiometer, available in two sizes to suit unventilated or ventilated instruments.
- CMF1 plate diameter
- 88 mm
- CMF1 rod diameter
- 16 mm
- CMF1 rod length
- 350 mm
Overview
In detail
How it works

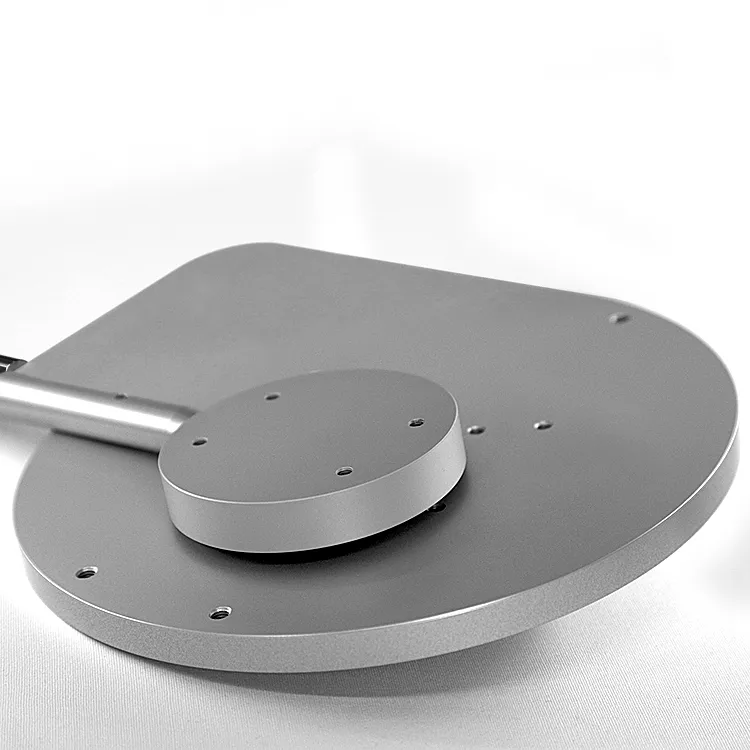

The CMF1 is a small round plate with a non-removable mounting rod, sized for instruments without a ventilation unit. The CMF4 is a larger plate that can carry unventilated instruments or ones fitted with a CVF3 or CVF4 ventilation unit.
Deployment
Both fixtures use a 350 mm long mounting rod (16 mm diameter on the CMF1, 20 mm on the CMF4). The CMB1 mounting bracket can be used to attach either fixture to a pole, mast or wall.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- CMF1 plate diameter
- 88 mm
- CMF1 rod diameter
- 16 mm
- CMF1 rod length
- 350 mm
- CMF4 plate diameter
- 280 mm
- CMF4 rod diameter
- 20 mm
- CMF4 rod length
- 350 mm
