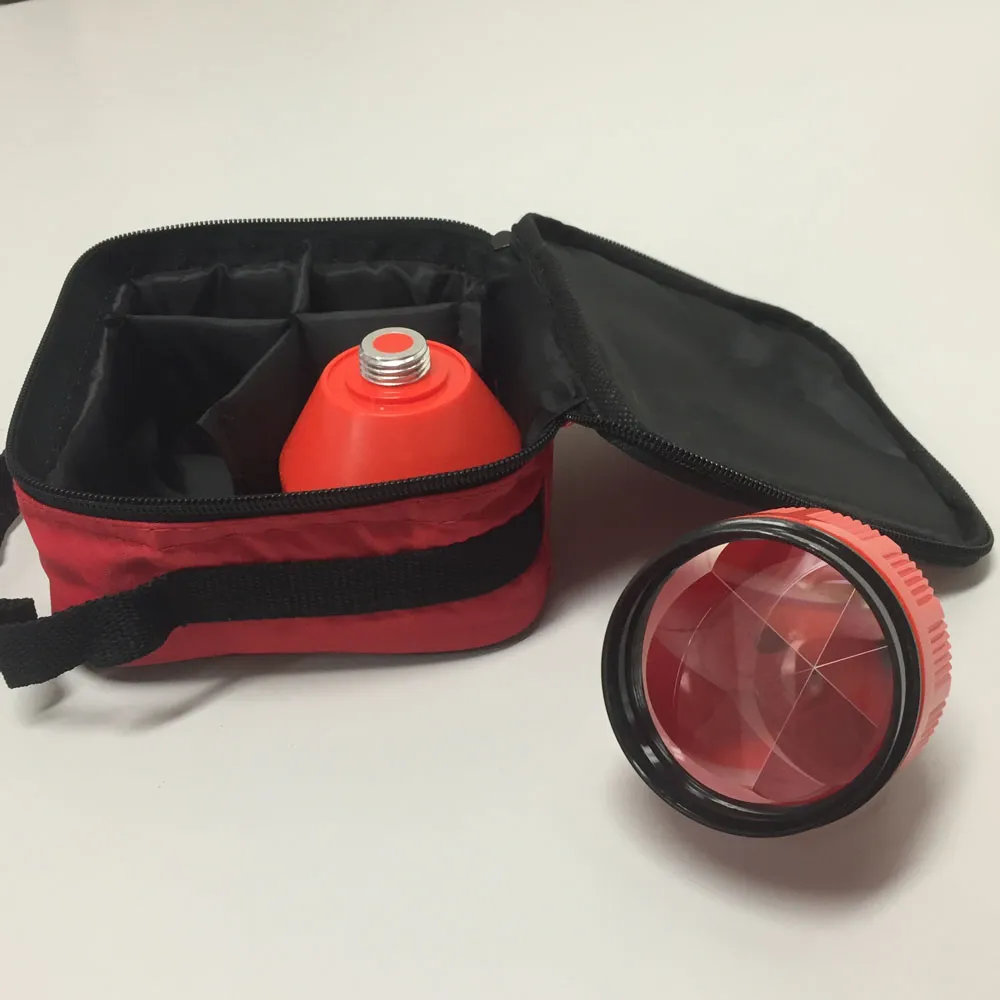

Circular Optical Prism Reflector for Surveying
This is a mirrored circular prism reflector target used with a total station for surveying and slope-stability monitoring in mining and civil engineering applications.
- Mount
- M20 (industry standard)
- Type
- Circular, mirrored prism
- Included accessories
- Calibration sheet, protective lens cap
Overview
In detail
How it works
The prism reflects the electronic distance-measurement (EDM) beam from a total station, letting operators scan and monitor slope stability and ground movement in mining and civil applications with good accuracy at an affordable price.
What's included
Each unit ships with a calibration sheet and a protective lens cap, and is fitted with an industry-standard M20 mount for compatibility with common prism poles and adapters.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Mount
- M20 (industry standard)
- Type
- Circular, mirrored prism
- Included accessories
- Calibration sheet, protective lens cap
