CA2 Laboratory Thermopile - Radiant fluxes measurement

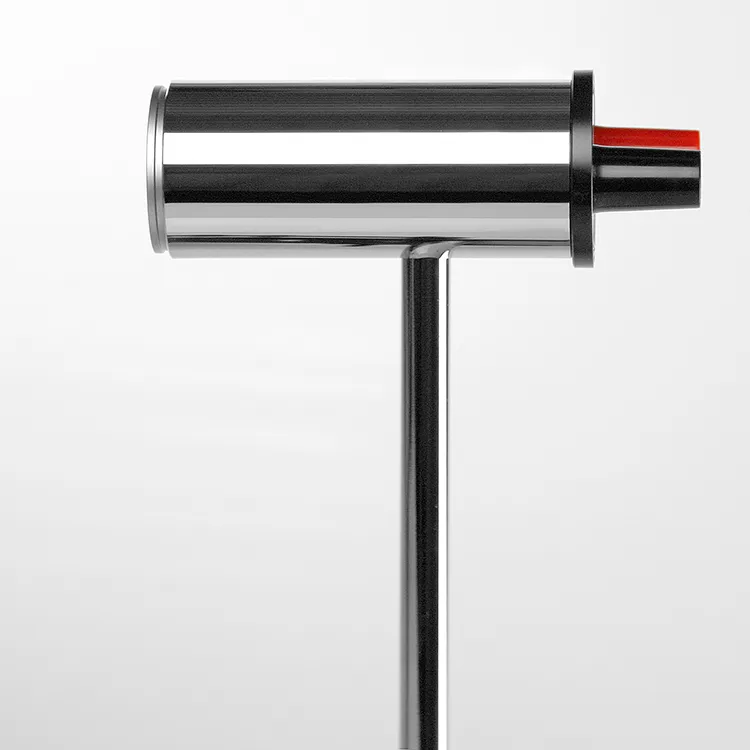

The CA2 thermopile measures radiant fluxes. It is sensitive to radiation from 0.2 to 50 µm and has a total field of view of 20°, determined by a cylindrical brass housing that contains a conical reflector and a removable glass window. The thermopile is very suitable for control (ovens) or demonstration (schools) purposes and can be used for reference-measurements.
- Spectral range (without window)
- 0.2 to 50 µm
- Spectral range (with window)
- 0.35 to 2.8 µm
- Sensitivity (parallel beam on front window)
- 7 to 20 µV/W/m²
Overview
In detail
How it works
The CA2 contains a thermopile detector with a spectrally non-selective black coating, so the detector responds to the total power absorbed.
The thermopile outputs a voltage in proportion to the radiation received.
Calibration
The thermopile is supplied with a calibration certificate.
Glass window
Irradiance measurements are easily affected by convection and thermal radiation losses to the environment. Therefore a glass window can shield the detector. By using this window, the spectral range is limited to 0.3 to 3 µm.
Applications
The CA2 laboratory thermopile is ideal for control purposes (such as ovens), demonstrations in schools and technical institutes, or to be used for reference measurements in optical laboratories.
The mounting rod allows easy fixing to standard optical bench fixing clamps. The terminals allow simple connection of bare wires or 4 mm banana plugs.
