C 110 Vibrating Wire Strain Gauges

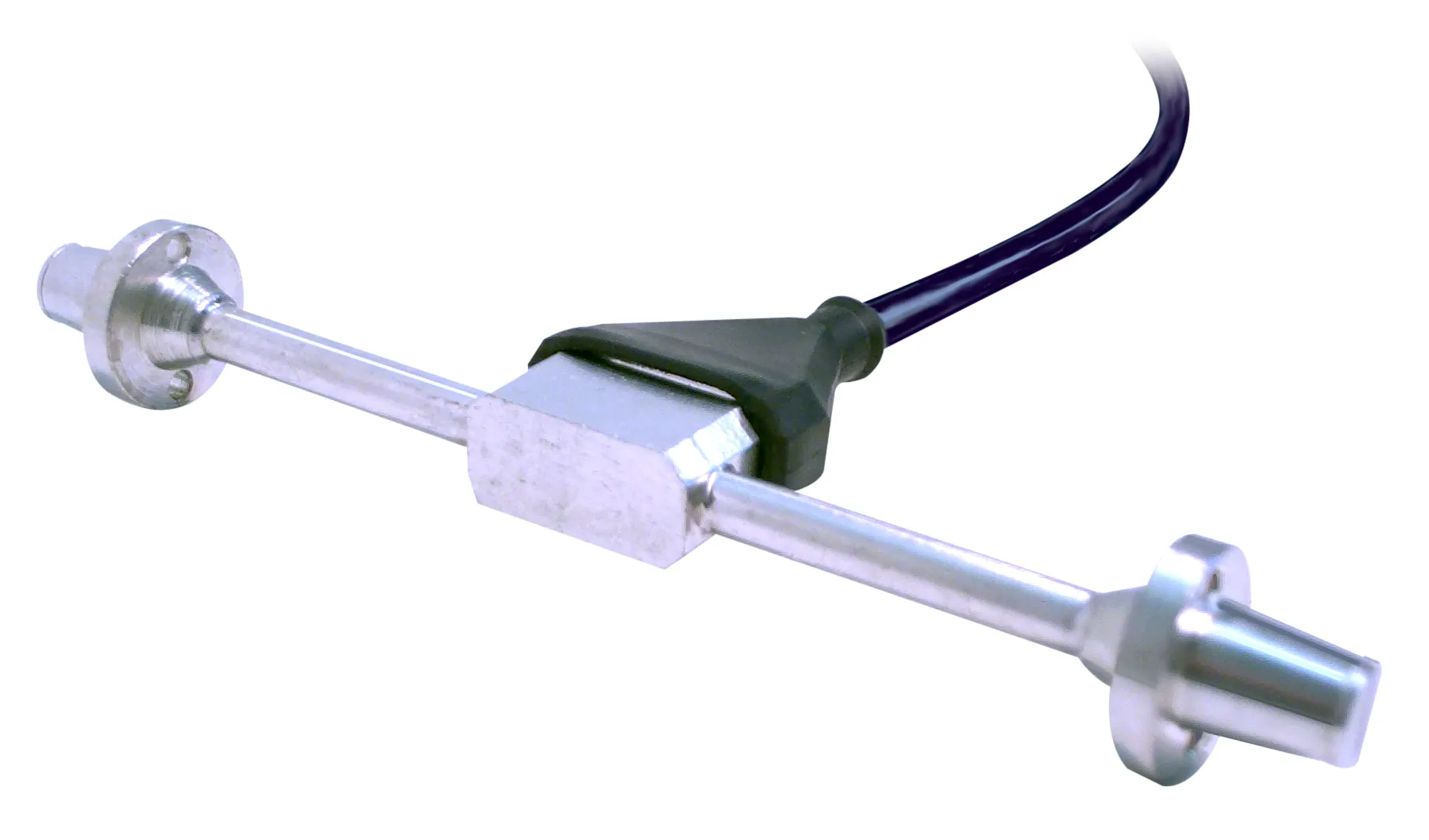

The C-110 vibrating wire strain gauge is a thin-wall steel tube sensor with two soldered steel end heads and electromagnetic excitation and pick-up coils, designed for embedment in concrete or structural elements to measure strain from stress variations. It is corrosion resistant and requires no maintenance.
- Strain range
- 2900 µε
- Gauge length
- 110 mm
- Resolution
- 0.35 µε (with PC readout)
Overview
In detail
How it works
The C-110 strain gauge consists of a thin-wall steel tube with two steel heads soldered to its extremities using solder with a low modulus of deformation; the distance between the flanges of the heads determines the gauge length. A small rectangular housing at the gauge midsection encloses the electromagnetic excitation and pick-up coils, and gauges are factory-set at mid-range so that half the range is available for tensile strain and half for compressive strain.
Cabling and application
Gauges are supplied with a 5-conductor cable when the electrical resistance of one coil is also used to provide temperature data, or a 4-conductor cable when temperature measurement is not required. The C-110 is designed for embedment in fine aggregate concrete to measure strain caused by variations in stress.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Strain range
- 2900 µε
- Gauge length
- 110 mm
- Resolution
- 0.35 µε (with PC readout)
- Strain gauge coefficient (K)
- 0.3
- Coil resistance
- 90 Ω (each)
- Total length
- 144 mm
- Tube diameter
- 6 mm
- Weight
- 85 g (without cable)
- Waterproof rating
- 1500 kPa (standard)
