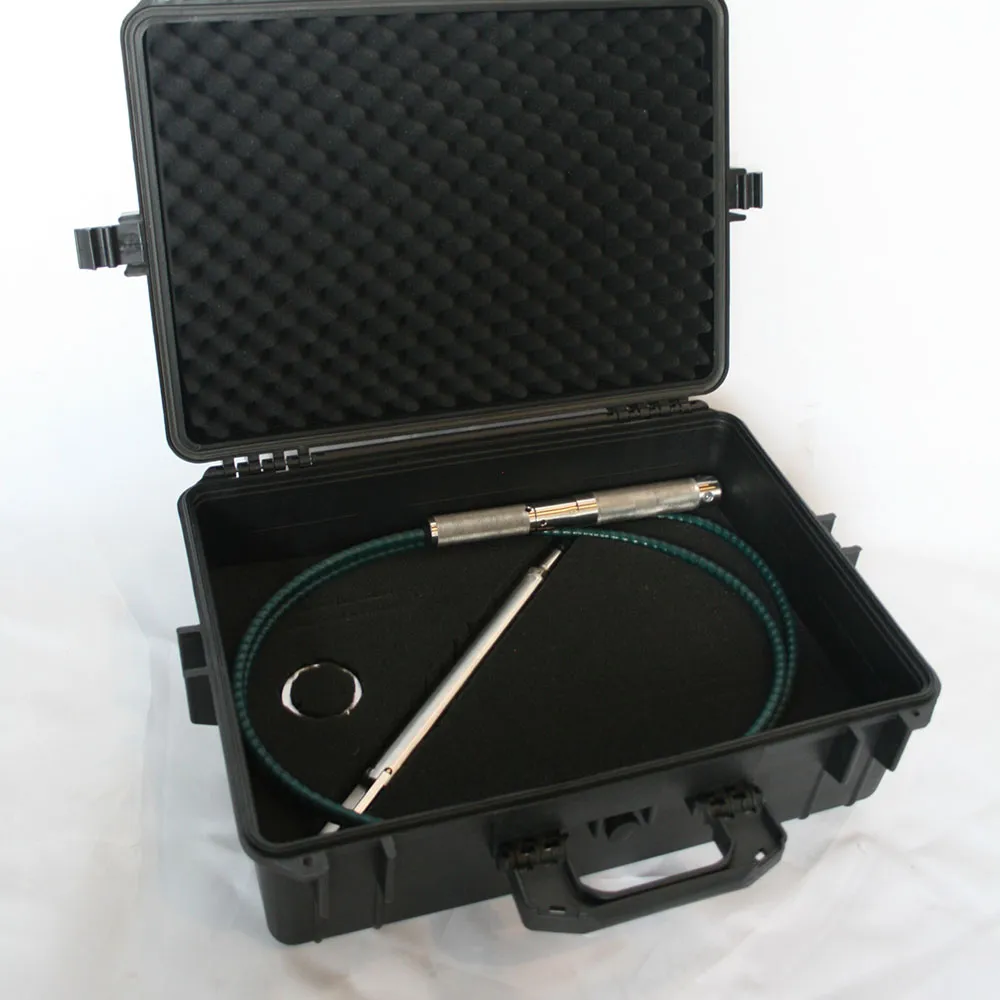

Borehole Micrometer
The Borehole Diameter Caliper is a mechanical micrometer used to measure roof-bolt-hole diameter along its length, with a stainless-steel body, expandable arms and a calibration ring to check accuracy over time.
- Range
- 25-55 mm standard (30-60 mm version also available)
- Insertion depth
- Up to 3 m from the borehole opening
- Body
- Stainless steel, replaceable brass slider and jaws
Overview
In detail
How it works
Three expandable arms take a precise diameter reading with a smooth pull-to-measure mechanism, and a calibration ring is supplied to check accuracy over time. The stainless-steel body has replaceable brass sliders and jaws, with millimetre gradations on both sides of the handle, and it's mine-tested for robustness.
Range
The standard unit measures 25 to 55mm in diameter, with a larger 30 to 60mm version also available, and can be inserted up to 3 metres from the borehole opening on a highly flexible cable.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Range
- 25-55 mm standard (30-60 mm version also available)
- Insertion depth
- Up to 3 m from the borehole opening
- Body
- Stainless steel, replaceable brass slider and jaws
- Graduations
- Millimetre gradations on both sides of the handle
Downloads
Documentation, openly available
Everything you need to specify, install and integrate the Borehole Micrometer — no login, no paywall.
