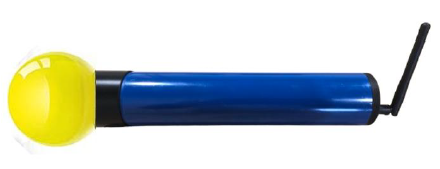

BluLink-Vigil
The BluLink-Vigil is a Bluetooth 5 logger for YieldPoint single-point digital deformation instruments that triggers on-board warning LEDs when a programmable deformation threshold is exceeded, alongside continuous data logging.
- Ingress
- IP67
- Supply
- 2x replaceable 3.6V lithium D-cell batteries (not alkaline)
- Datalogging
- 30,000+ readings, date and time stamped
Overview
In detail
How it works
The BluLink-Vigil works with YieldPoint single-point digital deformation instruments, storing 30,000+ date- and time-stamped data strings at user-defined intervals and beaconing new data via Bluetooth 5 to a networking gateway. It triggers powerful alert LEDs when a programmable deformation threshold is exceeded; both the threshold and the LED warning duration are programmable via the BluPoint app.
Power & housing
The unit has an IP67 enclosure with an external BLE5 antenna included, and runs on 2 replaceable 3.6V lithium D-cell batteries, good for 3-4 years (it will not operate with alkaline batteries). It measures 270mm long by 46mm diameter.
Reach out and say hi
Let us help. Tell us the site, the range you expect and what it has to talk to, and we’ll work out the right variant, cable and mounting — and quote it.
Specifications
Technical specifications
- Datalogging
- 30,000+ readings, date and time stamped
- Connectivity
- Bluetooth 5 to networking gateway
- Alert
- Threshold-triggered warning LEDs, threshold and duration programmable via BluPoint app
- Ingress
- IP67
- Antenna
- External BLE5 antenna included
- Supply voltage
- 2x replaceable 3.6V lithium D-cell batteries (not alkaline)
- Battery life
- 3-4 years
- Dimensions
- 270mm long, 46mm diameter
