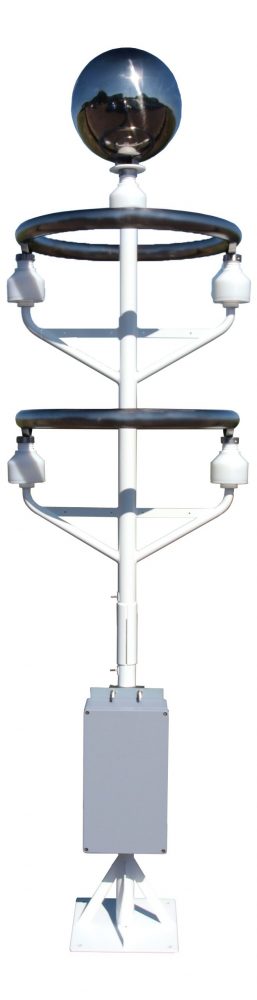

Biral BTD-300 Lightning Warning System
The BTD-300 is a lightning detection radar from Biral that detects cloud-to-cloud, cloud-to-ground and intracloud lightning discharges out to 83 km using a quasi-electrostatic operating principle, giving early warning before the first strike with a low false-alarm rate.
- Range
- 83 km (51 statute miles)
- Output
- Ethernet or serial data
- Lightning Detection
- Cloud-to-cloud, cloud-to-ground and intracloud discharges
Overview
In detail
How it works
The BTD-300 uses a passive, quasi-electrostatic measurement principle with no moving parts, giving superior lightning detection with a very low false alarm rate. An Ethernet or serial output lets it be integrated into a weather monitoring system, or connected directly to a standard PC using the supplied software.
Performance
Detection efficiency is 95% for a single lightning flash of any type, rising to 99% for a storm with 2 flashes and 99.9% for a storm with 3 flashes, for flashes within 56 km. Range is 83 km (51 statute miles), with range measurement uncertainty of ±5 km out to 20 km and ±10 km from 20 to 83 km, repeatability of ±300 m and ±1000 m over the same bands, and range resolution of 10 m. False alarm rate is under 2%, with a maximum flash rate of 120 flashes per minute and flash timing to the nearest 10 seconds from an internal clock.
Compliance
The BTD-300 is CE certified, complies with EMC standard EN61326, and meets EN50536:2011+A1:2012 for a Class 1 detector and IEC 62793 for a Class A detector, plus FAA performance criteria, making it suited to aerodrome installations.
Optional extras
A direction finder option adds 1° direction resolution. Heating options extend the operating temperature range to -40°C to 60°C, and a relay output is also available.
Reach out and say hi
Specifications
Technical specifications
- Lightning Detection
- Cloud-to-cloud, cloud-to-ground and intracloud discharges
- Output
- Ethernet or serial data
- Detection efficiency
- 95% (1 flash), 99% (2 flashes), 99.9% (3 flashes), within 56km
- Range
- 83 km (51 statute miles)
- Range measurement uncertainty
- ±5km (0-20km); ±10km (20-83km)
- Range measurement repeatability
- ±300m (0-20km); ±1000m (20-83km)
- Range resolution
- 10 m
- False alarm rate
- <2%
- Maximum flash rate
- 120 flashes/minute
- Time of flash
- Nearest 10s (internal clock)
Related
Often specified alongside
Weathertech

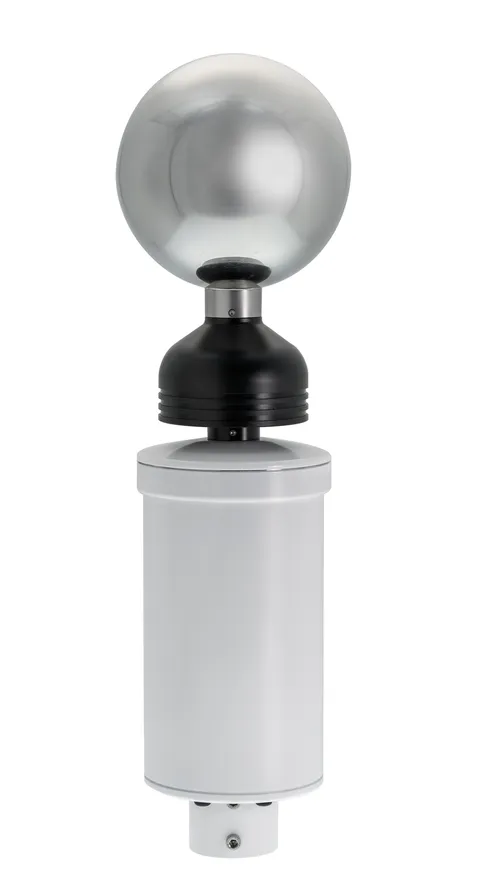

Biral BTD-200 Lightning Warning System
